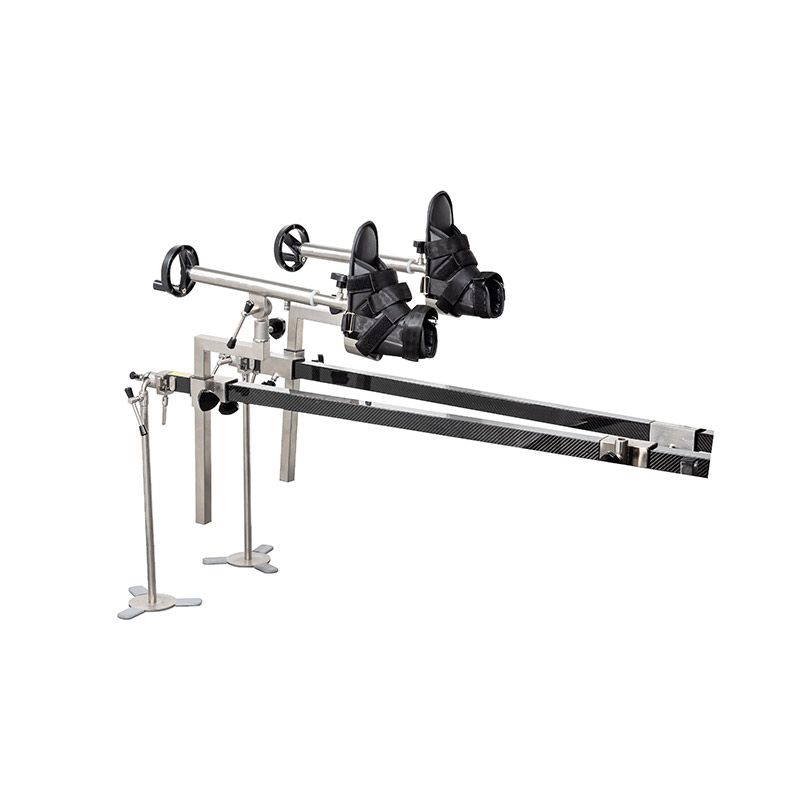

The main body of the traction frame is made of carbon fiber X-ray translucent material, which is suitable for X-ray and C-arm. It can meet the stretching and traction requirements of various leg orthopedic operations and can perform multiple angle conversions to ensure that doctors have a wide field of vision during the operation.

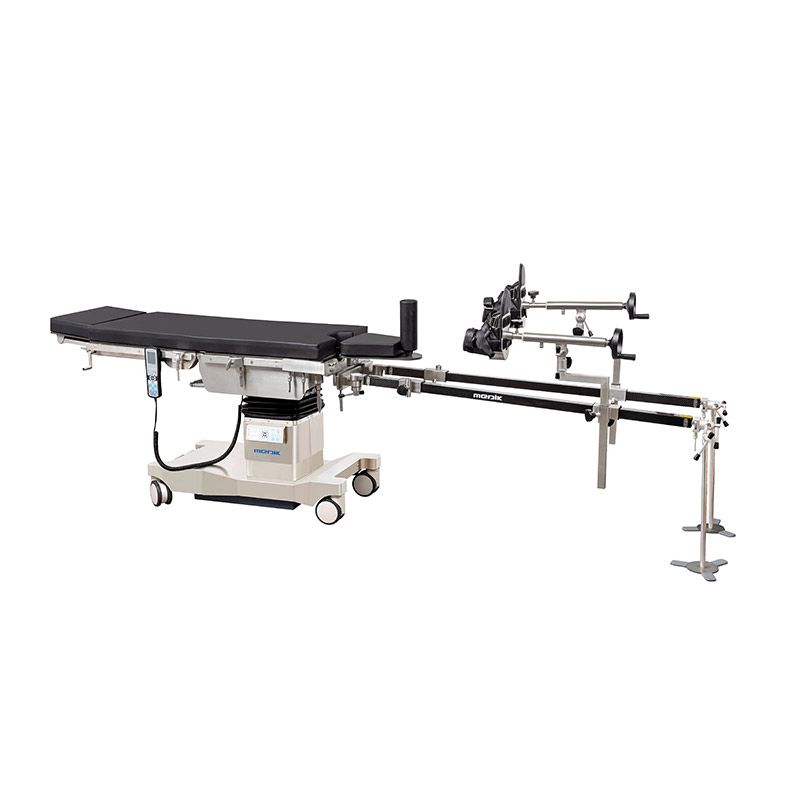

The main body of the traction frame is made of carbon fiber X-ray translucent material, which is suitable for X-ray and C-arm. It can meet the stretching and traction requirements of various leg orthopedic operations and can perform multiple angle conversions to ensure that doctors have a wide field of vision during the operation. The traction frame is light and easy to operate and can be perfectly suited for any operating table with different connecting solutions.
Main features
- The main part is made of carbon fiber, which has a strong perspective and is suitable for X-ray and C-arm.
- The metal part is made of 304 stainless steel and aviation aluminum, ensuring a stable structure and reducing weight.
- The flexible joint design can be converted into various angles to ensure the doctor has a wide field of vision.

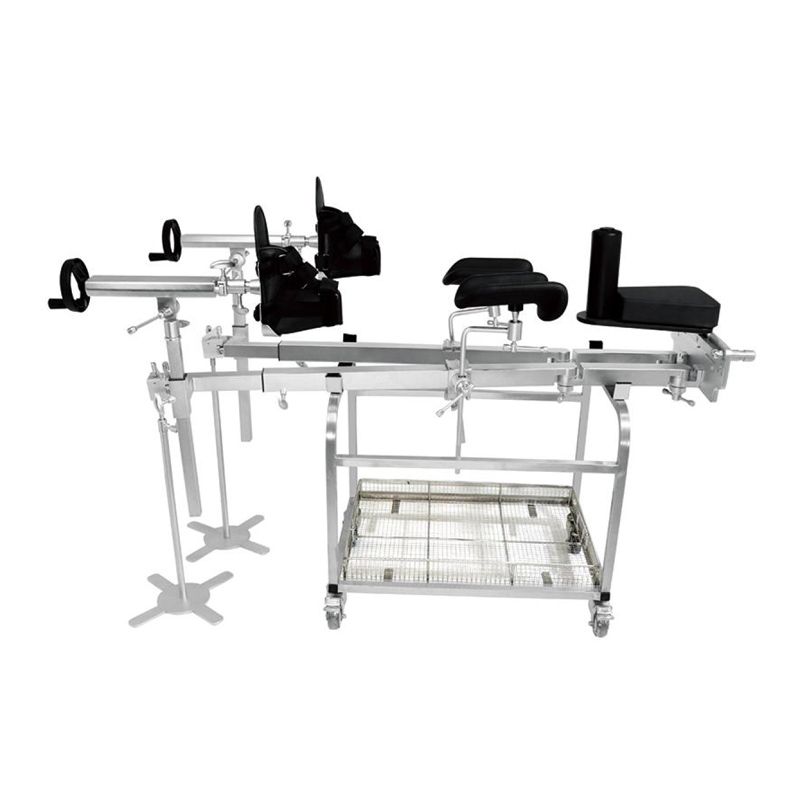

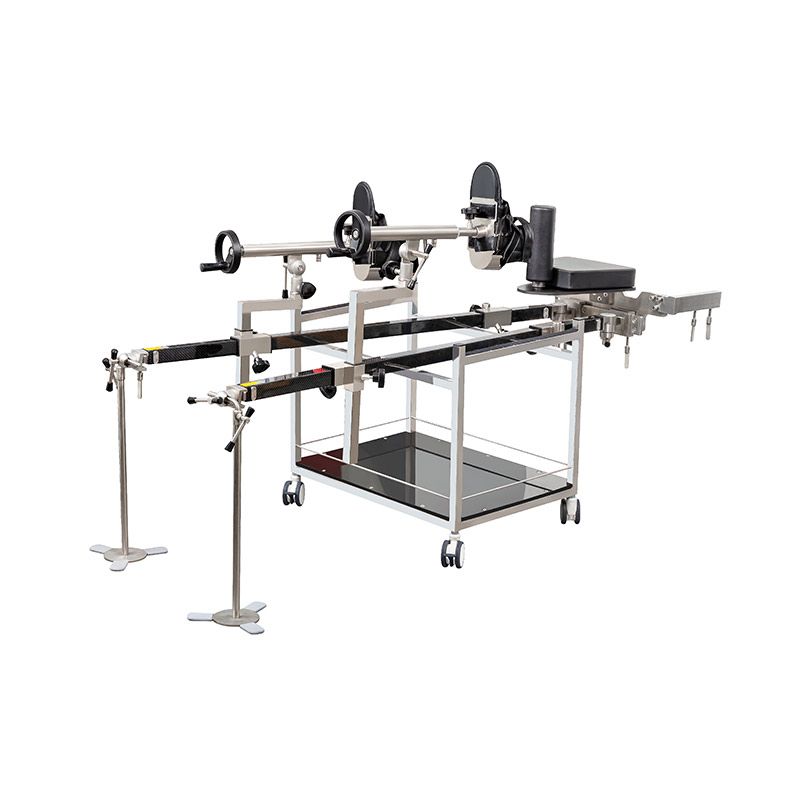

- Equipped with an auxiliary trolley, it is easy to install and use, and is suitable for various operating tables.
Technical parameter
| Model | YA-B105 |
| Height adjustment | Can follow the height of surgical table |
| Carbon Fiber Pole Outreach | 180° |
| Carbon Fiber Pole length | 1400mm |
| Foot adjustment device translation | ≥1200mm |
| Foot adjustment device height adjustment | ≥380mm |
| Foot adjustment device horizontal rotation angle | 360° |
| Foot adjustment device vertical rotation angle | 360° |
| shoe rotation angle | 360° |
| shoe traction distance | ≥190mm |
| Leg support adjustment distance | ≥1200mm |
| Lateral position lift | ≥120mm |
| Seat pillar length | 230mm |
| Seat pillar dia | 80mm |
