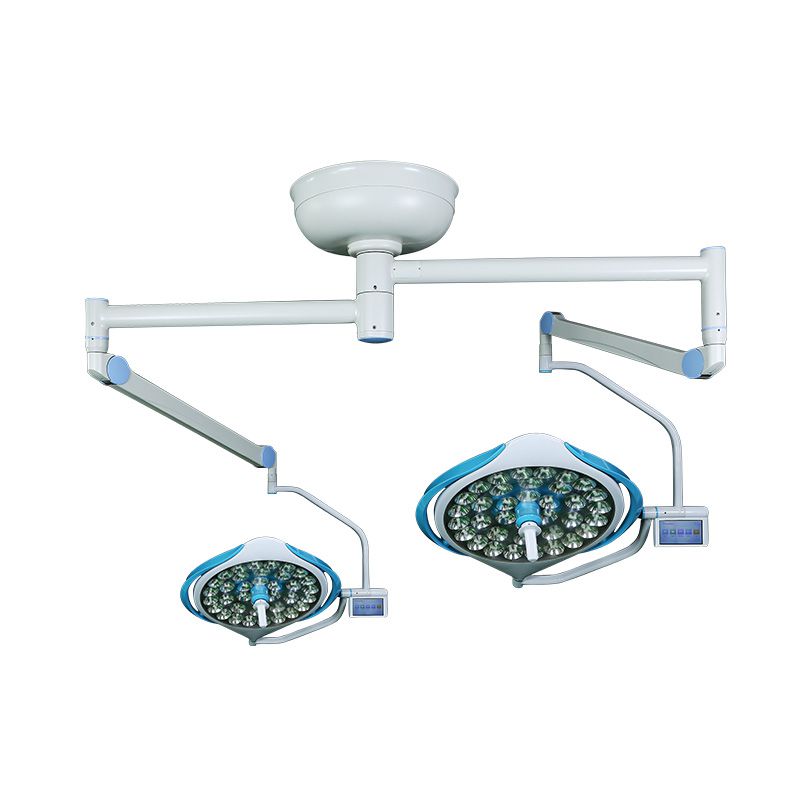

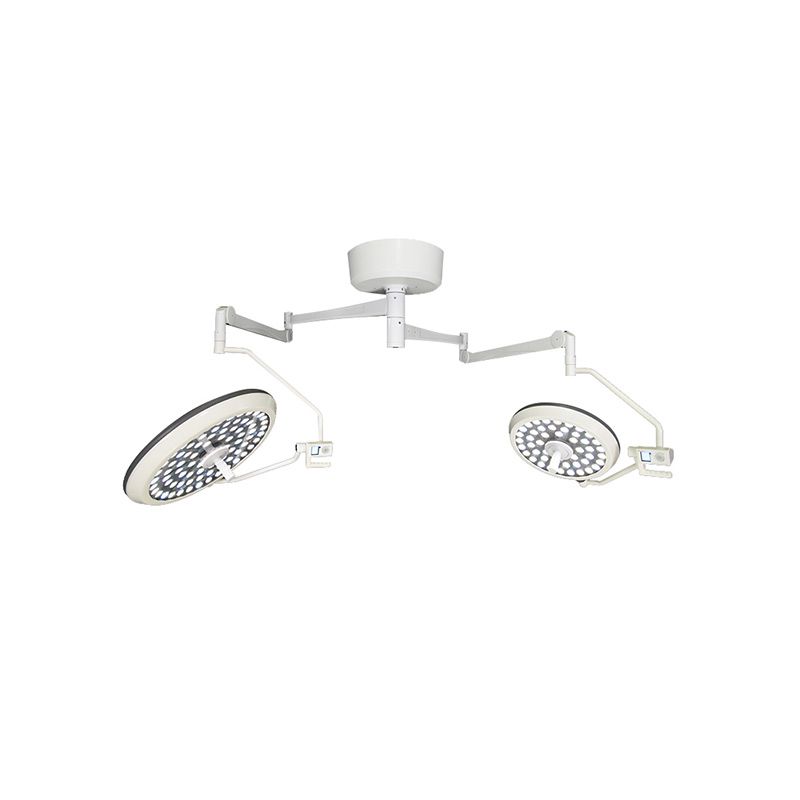

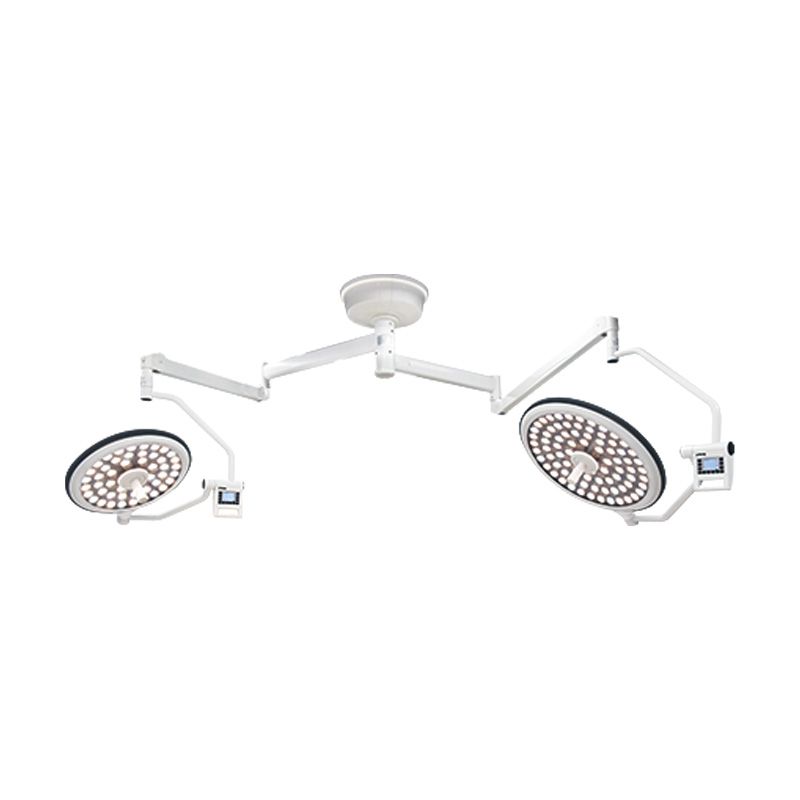

MK-D700500Z2 Ceiling-mounted LED Surgical Lighting System
MK-D700500Z2 Ceiling-mounted LED Surgical Lighting System

The MK-D700500Z2 Surgical Lighting System provides exceptional surgical site illumination and delivers up to 160,000 lux of pure, white LED light with overlapping beams that virtually eliminate shadows.

Main Features

- The MK-D700500Z2 Surgical Lighting System provides exceptional surgical site illumination and delivers up to 160,000 lux of pure, white LED light with overlapping beams that virtually eliminate shadows.

- Lightweight aluminum construction. Weighs approximately 30% less than previous generations of steel arms

- Adjustable temperature permits the OR staff to choose the best light color to deliver vivid tissue color, clarity and contrast.depending on the procedure or surgical staff preference.

- Knob control panel with 1.8" LCD screen which demonstrates the status of lights, with handle to make the adjustmentment of lights more easily.

- High-definition (HD) in-light cameras can be available so OR staff can easily share information with high-quality images and videos(Optional).


 Technical Paramter

Luminance(Lux)40,000-160,000 & 40,000-120,000
Diameter of light head(mm) 700&500
Number of bulbs 80&48
Color temperature(K) 3000-5000 adjustable
Color render index(Ra)≥95%  &  ≥95% (adjustable)
Spot Diameter (mm)120-260
LED bulb brandGermany Osram
Number of bulbs (pcs) 80 & 48
LED Power (W) 75 & 45
Illuminance depth(mm) 600-1500 & 800-1500
Brightness adjustment >50000
Bulb service life(H) >50000
Voltage AC110-240V 50/60Hz
