Brand: Medik
Model: YA-01E
Certificate: CE/ ISO
Overall Size: 2057*508*660-1145mm
Loading Capacity: 250kg
Function: Back section, Foot section, HI-LOW, and Trendelenburg and Reverse, Lateral tilt
After-sale Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

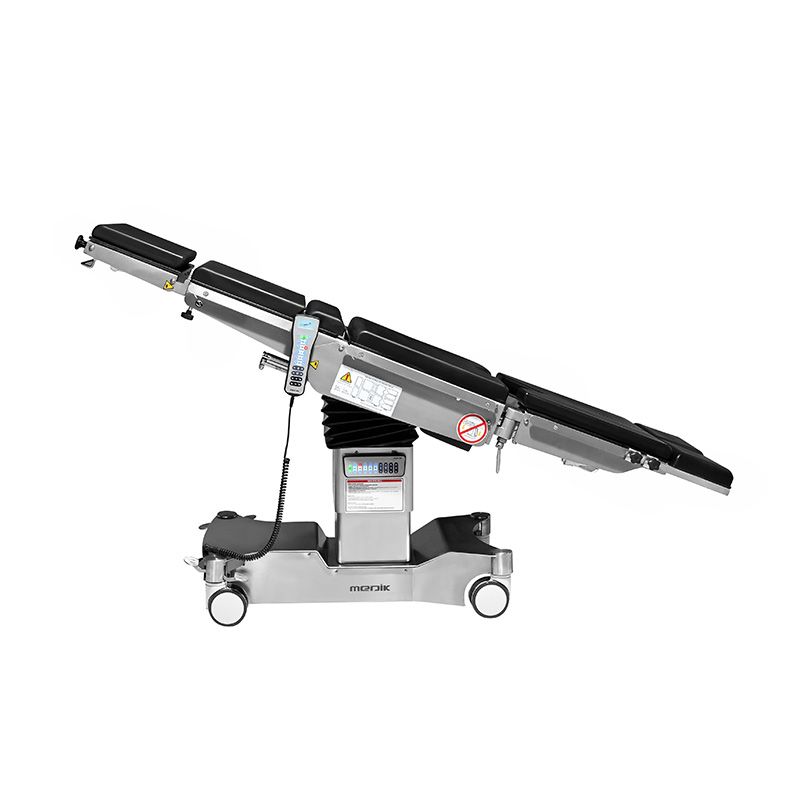

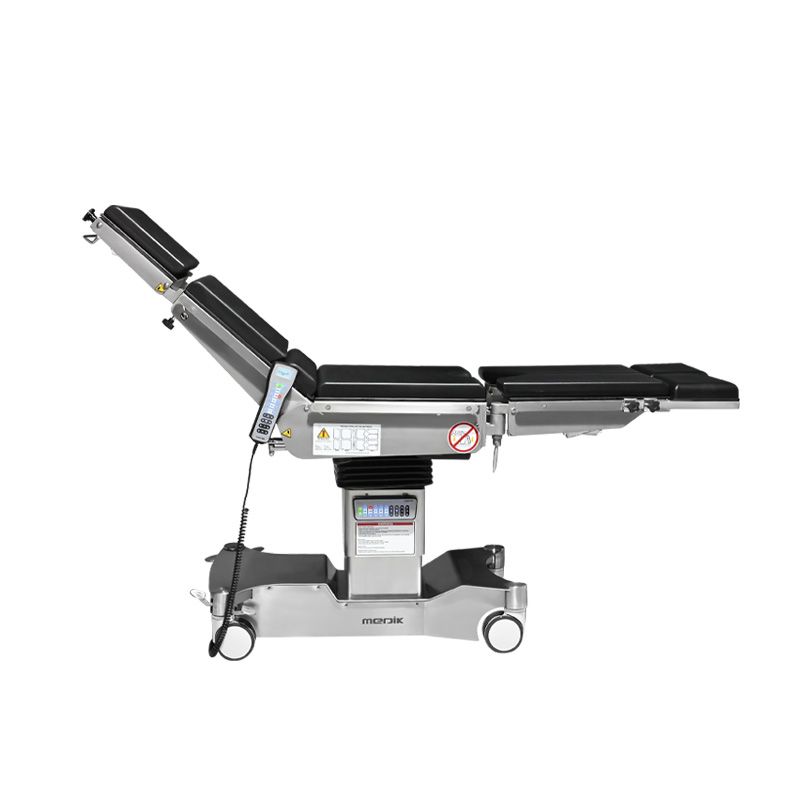

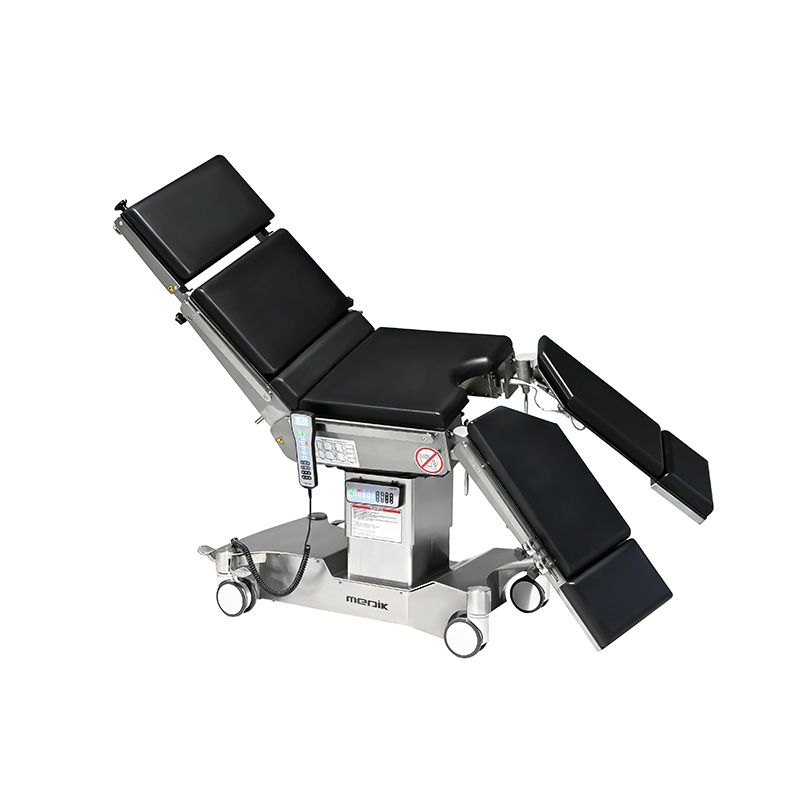

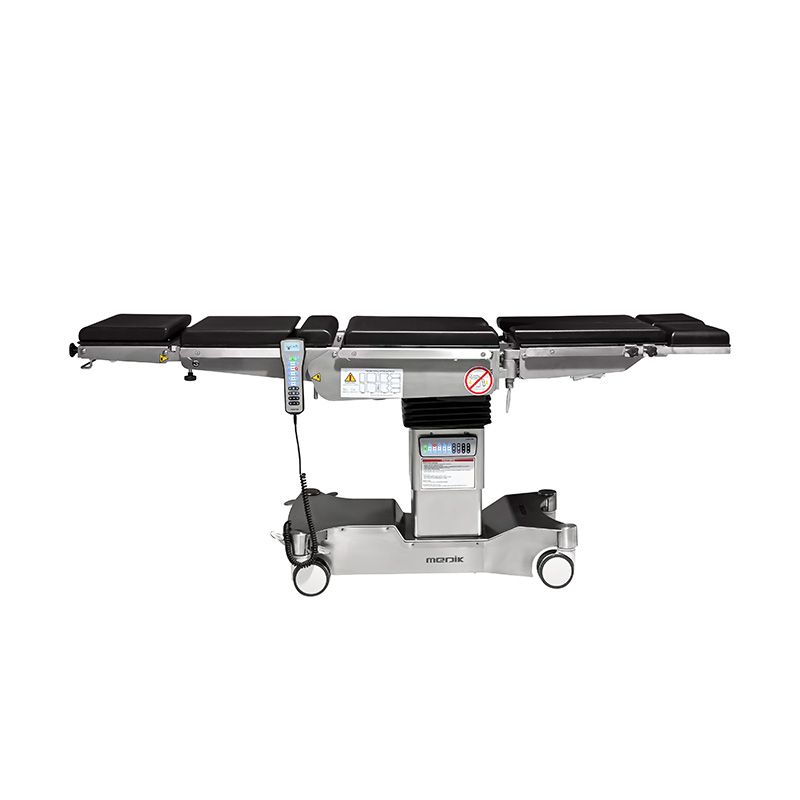

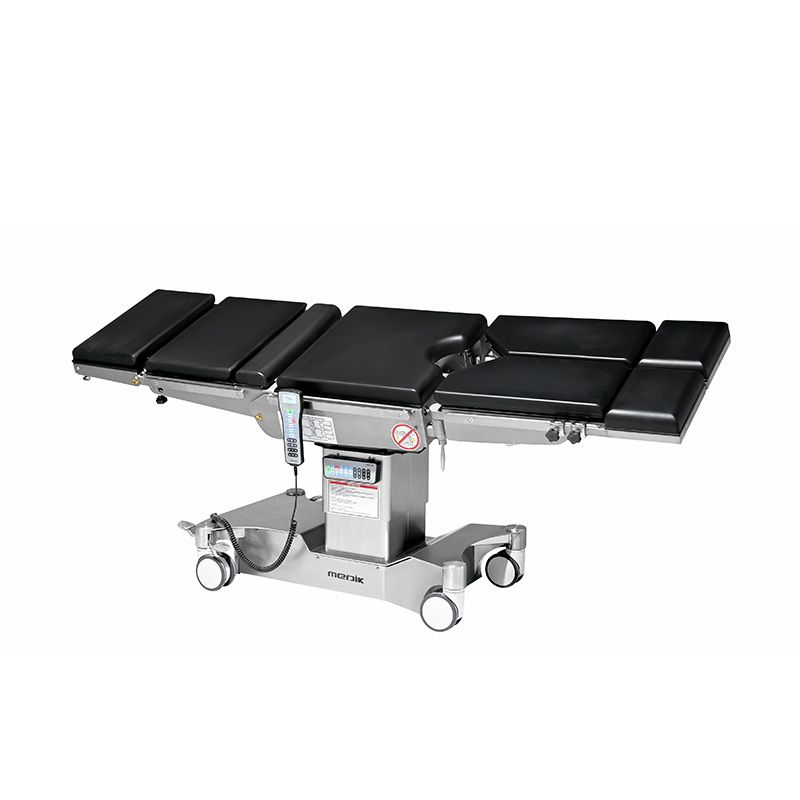

Engineered for increasingly complex surgical scenes, electric operating table YA-01E comes with intelligent automatic control system satisfying various demands of general surgeries.
Features

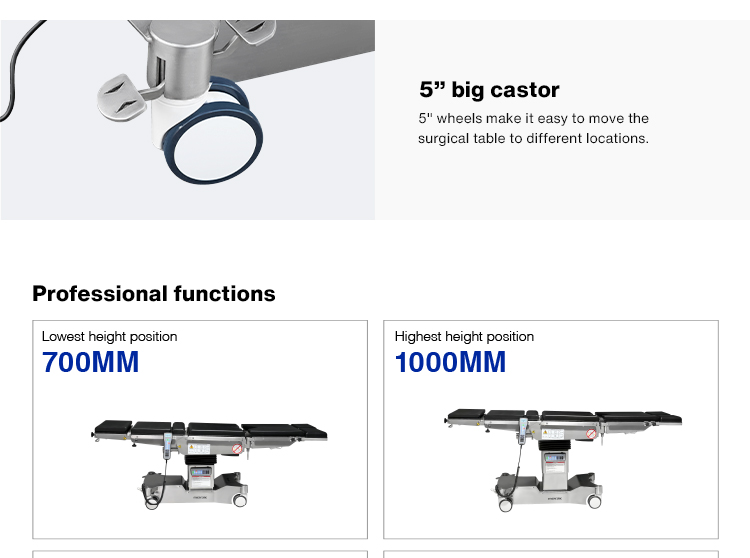

- Four 125mm wheels with a centralized brake system
- Divided 6 sections top plate with various patient positions for all kinds of general surgery
- Horizontal table top super 350mm sliding for C-arm access to the entire body

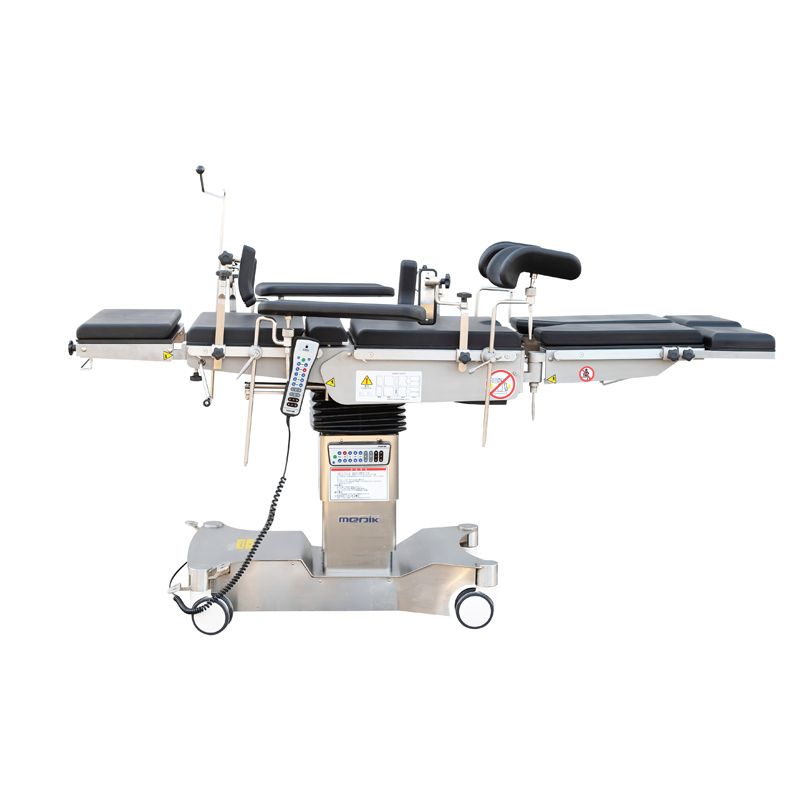

- With access to connect the extension device and traction for orthopedic operations
- Double deck table top for X-ray cassette position
- With a button to operate the table in one step, return the table to a completely horizontal or "zero" position
- With memory function of the movements for the doctor to find the position for certain surgery operation in short time
- With a button to block all the movements of the table in the manual control

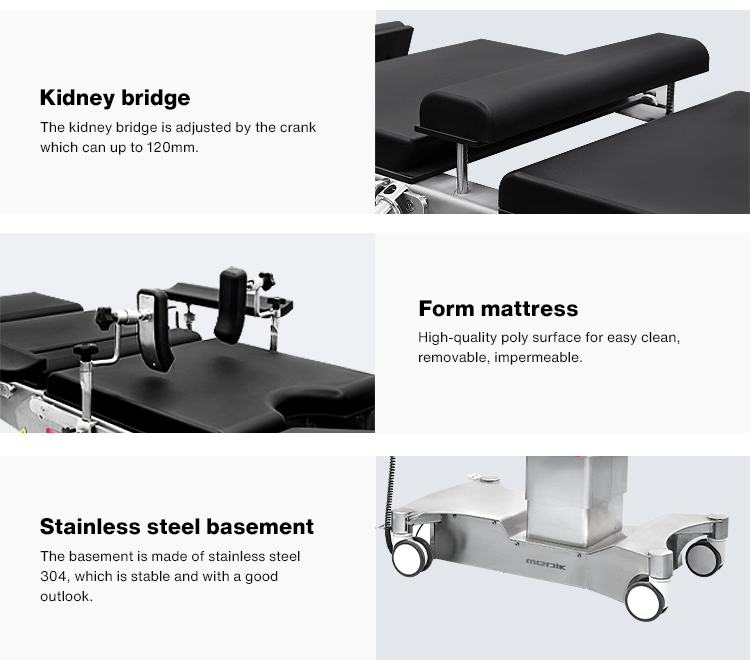

- Built-in kidney bridge
- Memory mattress with ultrasonic seamless welding cover to provide great comfort for long time surgery
- Super SS frame and base anti-corrosion

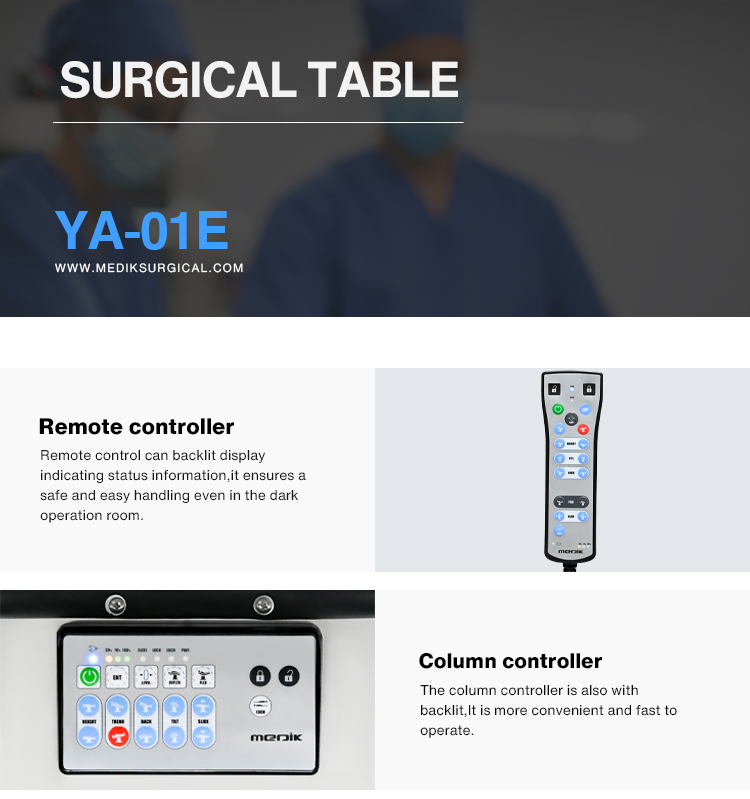

- Hand remote control with LED light integrated to the manual control to illuminate it when the operating room is darkened
- Inbuilt column control panel with visible icon for position operation
- Unique patented support structure provides super table stability with any position without any shaking
Technical parameter
Model | YA-01E |
Table Length | 2057mm( 81" ) |
Table Width | 508mm( 20" ) |
Height adjustment | 660-1145mm( 26"~45" ) |

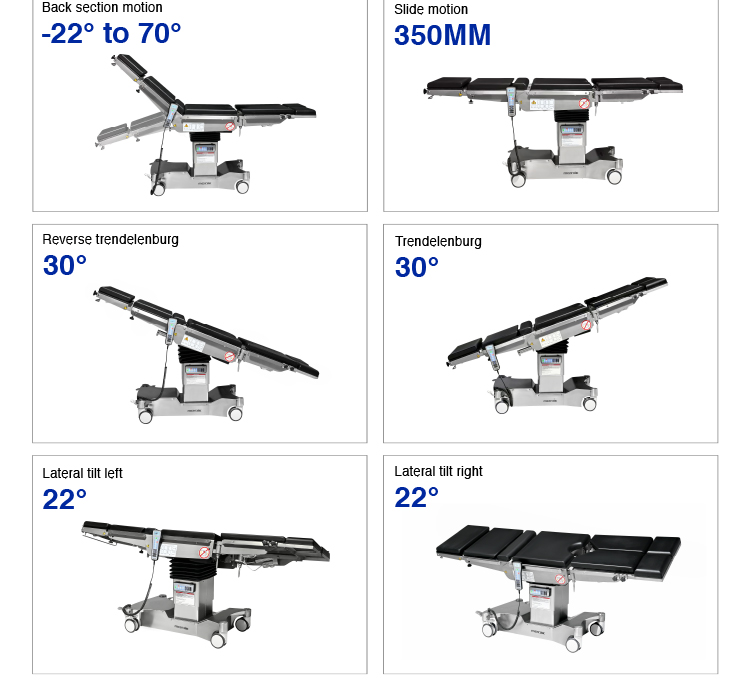

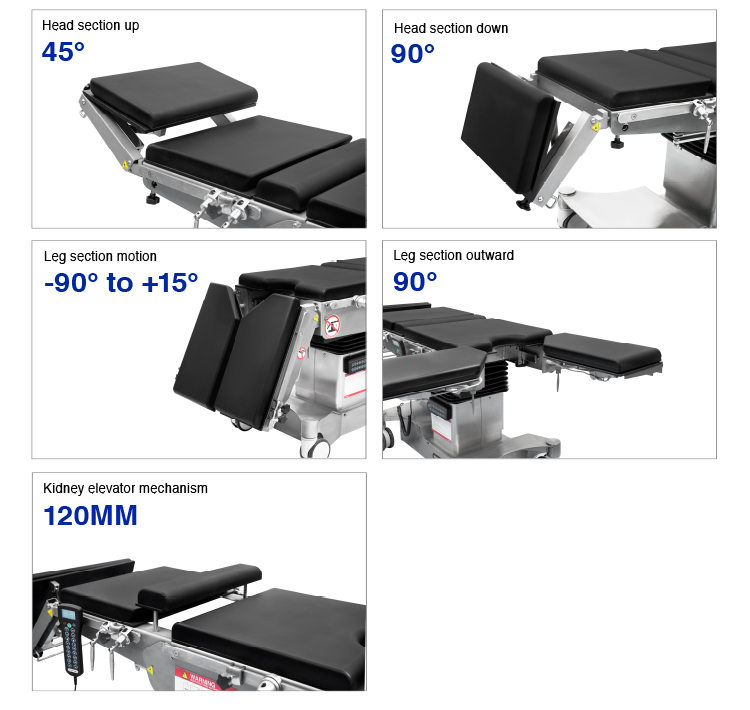

Head section adjustment | +90°to -90° |
Back section adjustment | +80°to -40 |
Leg section adjustment | 0 to -90° |
Leg section outward | 90° |
Trendelenburg | 30° |
Reverse trendelenburg | 30° |
Lateral Tilt (left/right) | 20°/ 20° |
kidney bridge | 120mm( 4.7" ) |
Sliding | 450mm( 17.7" ) |
Tabletop flex | 140° |
Tabletop reflex | 100° |
Loading capacity | 250kg(550lb) |
