Model: YA-NS04G
Certificate: CE / ISO
External size：1560*502*38mm
Viewing size：1440*420mm
Lighting type: Back-lit LED film viewer
After-sales Service: Online technical support
Warranty: 1-Year on Frame and Welds, and 1-Year on Parts

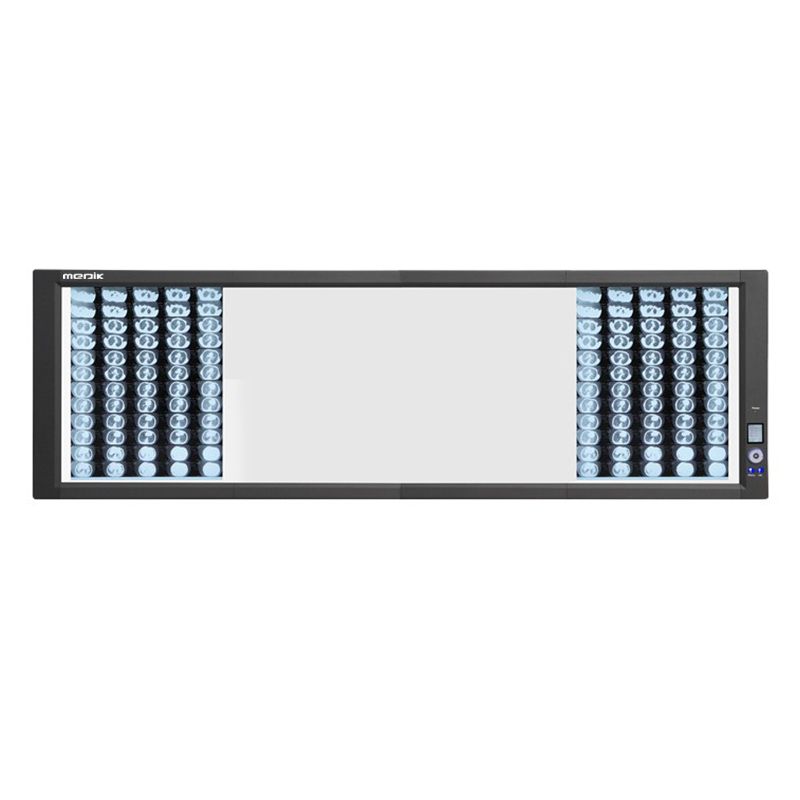

The YA-NS04G is a four-panel LED film viewer with ultra-bright, long-lasting OSRAM LEDs. It offers smooth digital dimming, uniform illumination, and smart features like auto-on sensor and brightness memory. Built with durable materials, it supports wall or bracket mounting for medical use.
Features
- Ultra-bright OSRAM LEDs with a 50,000 h+ service life
- Stepless digital PWM dimming (0–100%) via 1.77″ LCD (100 levels)
- Outstanding lighting uniformity (≥ 90 %) across four panels
- High-transparency acrylic light guide for glare-free viewing
- Auto-sensing activation and independent panel control
- Memory function plus delayed power-off
- Compact, GaN-powered aluminum + ABS chassis for efficient heat handling
- Soft silicone film clips; wall or bracket mounting
- Compatible with X-ray, digital, and mammography films
Technical parameter
| Model | YA-NS04G |
| External size | 1560*502*38mm |
| Viewing size | 1440*420mm |
| Maximum size of a readable film | 17*14 inches（355.6*431.8mm） |
| Max Power Consumption | 120W |
| Light source, Color temperature, Lifespan | Super brightness SMD LED780 pieces/pair; 8000K color temperature; light source life is over 50000h |
| Brightness adjustment range | 0～6000cd/㎡（customizable brightness） |
| Film clip device | Silicone clip device |
| Installation method | wall installation and bracket installation |
| Brightness uniformity of observation screen | ≥90% |
| Power supply; Voltage;Frequency | Global voltage adaptive built in power supply；AC90V～240V；50/60Hz |
