Model: YA-NS01G
Certificate: CE / ISO
External size：480*502*38mm
Viewing size：360*420mm
Lighting type: Back-lit LED film viewer
After-sales Service: Online technical support
Warranty: 1-Year on Frame and Welds, and 1-Year on Parts

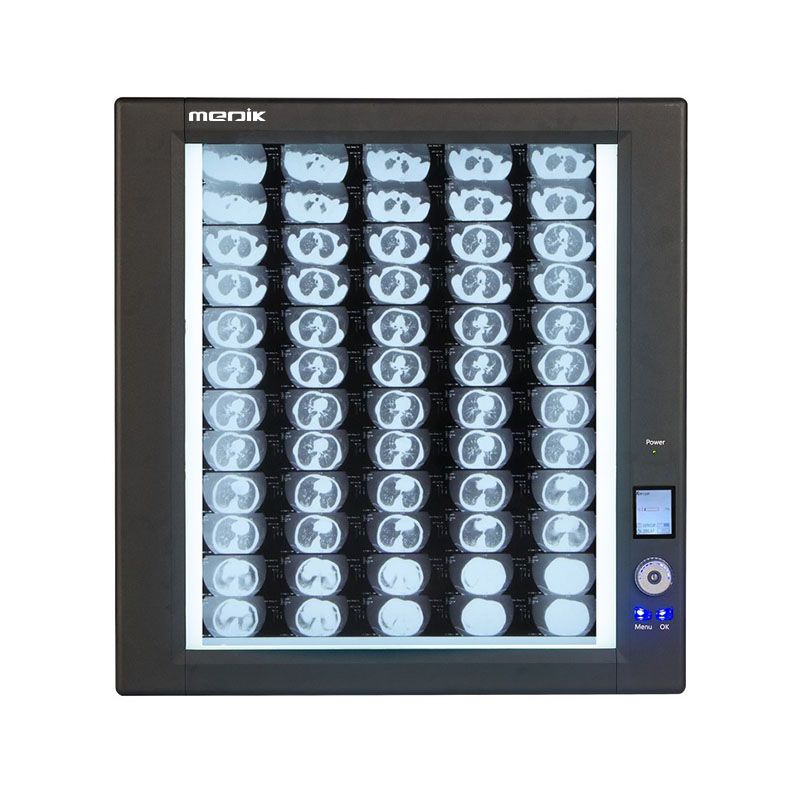

The YA-NS01G delivers ultra-high brightness using advanced back-lit LED technology, designed for clear and consistent film reading in medical environments. Combining a sleek 25 mm frame with digital precision dimming and smart sensor control, it offers a durable, reliable, and professional-grade solution for viewing analog X-ray, digital X-ray, and mammography films.
Features
- High-brightness back-lit LED with over 50,000 hours of lifespan
- Stepless PWM dimming from 0% to 100% for smooth light control
- 1.77" digital display with 100-level brightness adjustment
- Auto-on sensor activates when film is inserted
- Individual panel control with brightness memory and delay-off
- Even light distribution with high-transparency acrylic light guide
- Sturdy aluminum and ABS housing for better heat dissipation
- Flexible silicone clips for easy film loading
- Wall or bracket mounting is supported
- Compatible with X-ray, digital, and mammography films
Technical parameter
| Model | YA-NS01G |
| External size | 480*502*38mm |
| Viewing size | 360*420mm |
| Maximum size of a readable film | 17*14 inches（355.6*431.8mm） |
| Max Power Consumption | 30W |
| Light source, Color temperature, Lifespan | Super brightness SMD LED780 pieces/pair; 8000K color temperature; light source life is over 50000h |
| Brightness adjustment range | 0～6000cd/㎡（customizable brightness） |
| Film clip device | Silicone clip device |
| Installation method | wall installation and bracket installation |
| Brightness uniformity of the observation screen | ≥90% |
| Power supply; Voltage;Frequency | Global voltage adaptive built in power supply；AC90V～240V；50/60Hz |
