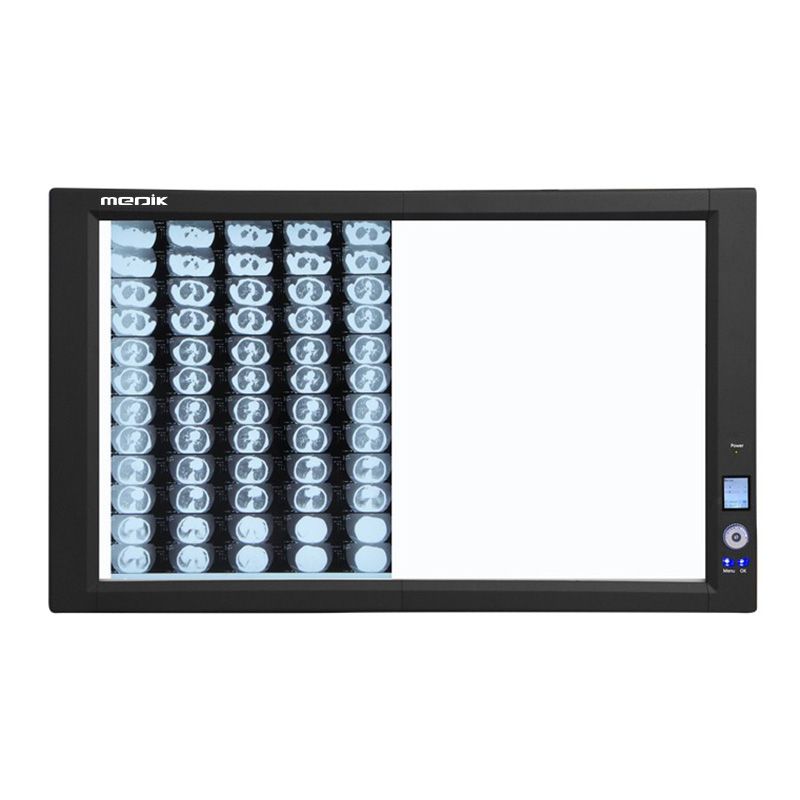

Model: YA-NS02G
Certificate: CE / ISO
External size：840*502*38mm
Viewing size：720*420mm
Lighting type: Back-lit LED film viewer
After-sales Service: Online technical support
Warranty: 1-Year on Frame and Welds, and 1-Year on Parts
The YA-NS02G offers ultra-bright, uniform illumination through advanced back-lit LED technology. Encased in a slim 38 mm aviation-grade aluminum and ABS shell, it features digital controls, film-sensing activation, and a high-clarity acrylic light guide—perfect for clear reading of X-ray, digital, and mammography films in clinical settings.
Features
- Ultra-bright back-lit LED with up to 6,000 cd/m² brightness
- Long-lasting LED lifespan over 50,000 hours
- Smooth 0–100% stepless PWM dimming
- 1.77" LCD screen with 100 brightness levels
- The auto-on sensor activates when film is inserted
- Independent panel control with memory and delay-off
- Uniform lighting with high-transparency acrylic light guide
- Durable aluminum + ABS housing for efficient heat dissipation
- Soft silicone clips for quick film loading
- Supports wall or bracket mounting
- Compatible with X-ray, digital, and mammography films
Technical parameter
| Model | YA-NS02G |
| External size | 840*502*38mm |
| Viewing size | 720*420mm |
| Maximum size of a readable film | 17*14 inches（355.6*431.8mm） |
| Max Power Consumption | 60W |
| Light source, Color temperature, Lifespan | Super brightness SMD LED780 pieces/pair; 8000K color temperature; light source life is over 50000h |
| Brightness adjustment range | 0～6000cd/㎡（customizable brightness） |
| Brightness uniformity of the observation screen | ≥90% |
| Power supply; Voltage;Frequency | Global voltage adaptive built-in power supply； AC90V～240V；50/60Hz |
