Model: YA-NS03G
Certificate: CE / ISO
External size：1200*502*38mm
Viewing size：1080*420mm
Lighting type: Back-lit LED film viewer
After-sales Service: Online technical support
Warranty: 1-Year on Frame and Welds, and 1-Year on Parts

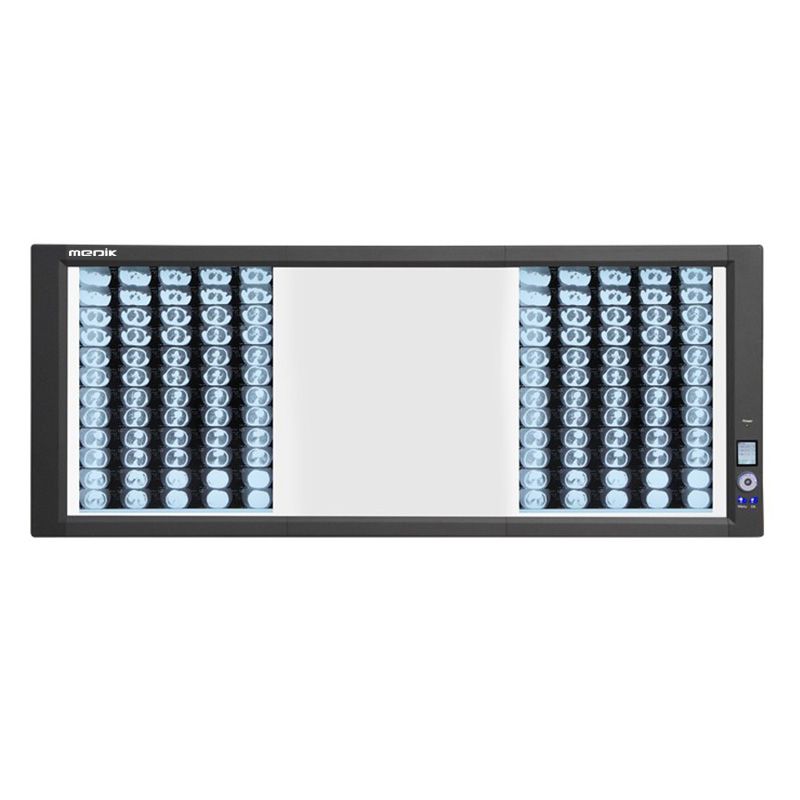

The YA-NS03G features three panels with ultra-bright OSRAM LED and a slim, durable aluminum-ABS frame. It provides even, glare-free illumination with adjustable brightness via a clear digital display. Equipped with a smart film sensor and memory function, it’s ideal for viewing X-ray, digital, and mammography films.
Features
- Efficient OSRAM back-lit LEDs with 50,000 h+ lifespan
- Smooth 0–100% PWM dimming via 1.77″ LCD (100-step)
- Even illumination with high-transparency acrylic light guide
- High brightness (up to 6,000 cd/m²) and ≥ 90 % uniformity
- Auto-on sensor; independent panel control
- Brightness memory and delayed shut-off
- Durable aluminum + ABS housing with GaN-powered drivers
- Soft silicone clips for easy film handling
- Suitable for analog X-ray, digital X-ray, and mammography films
Technical parameter
| Model | YA-NS03G |
| External size | 1200*502*38mm |
| Viewing size | 1080*420mm |
| Maximum size of a readable film | 17*14 inches（355.6*431.8mm） |
| Max Power Consumption | 90W |
| Light source, Color temperature, Lifespan | Super brightness SMD LED780 pieces/pair; 8000K color temperature; light source life is over 50000h |
| Brightness adjustment range | 0～6000cd/㎡（customizable brightness） |
| Film clip device | Silicone clip device |
| Installation method | wall installation and bracket installation |
| Brightness uniformity of the observation screen | ≥90% |
| Power supply; Voltage;Frequency | Global voltage adaptive built-in power supply； AC90V～240V；50/60Hz |
