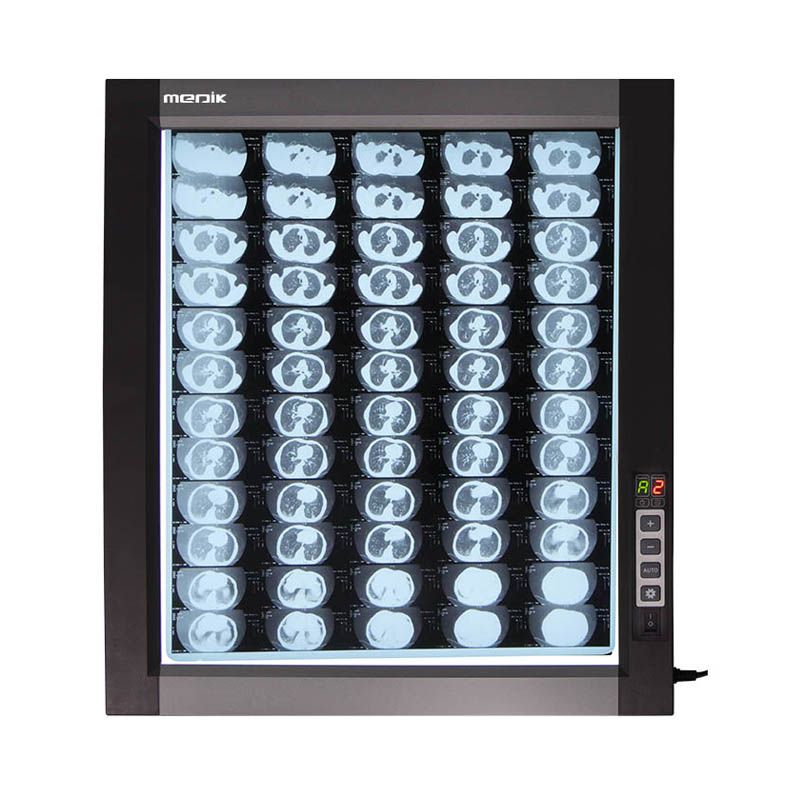

Model: YA-NS01D
Certificate: CE / ISO
External size：450*500*25mm
Viewing size：360*420mm
Lighting type: Side-lit LED film viewers
After-sales Service: Online technical support
Warranty: 1-Year on Frame and Welds, and 1-Year on Parts
Main Features
- High-efficiency, long-lasting LED light source with an average lifespan of over 50,000 hours
- Slim design using aviation-grade aluminum and ABS for excellent heat dissipation
- Side-light and light guide plate technology, achieving a total thickness of just 25mm
- PWM digital high-frequency dimming for stable color temperature and soft, eye-friendly light
- Film sensor activates lighting when film is inserted; each panel operates independently and supports brightness memory and delayed shut-off functions
Technical parameter
| Model | YA-NS01D |
| External size | 450*500*25mm |
| Viewing size | 360*420mm |
| Maximum size of readable film | 17*14 inches（355.6*431.8mm） |
| Max Power Consumption | 30W |
| Light source ; Color temperature; Lifespan | Super brightness SMD led144 pieces / panel; 8000K color temperature; light source lifespan is over 50000h |
| Brightness adjustment range | 0～4000cd/㎡（customizable brightness） |
| Film clip device | Silicone clip device |
| Installation method | wall intallation and barcket installation |
| Brightness uniformity of observation screen | ≥90% |
| Power supply; Voltage;Frequency | Global voltage adaptive built in power supply；AC90V～240V；50/60Hz |
