Model: YA-NS03D
External size: 1170*500*25mm
Viewing size:1080*420mm
Certificate: CE / ISO
After-sales Service: Online technical support
Warranty: 1-Year on Frame and Welds, and 1-Year on Parts

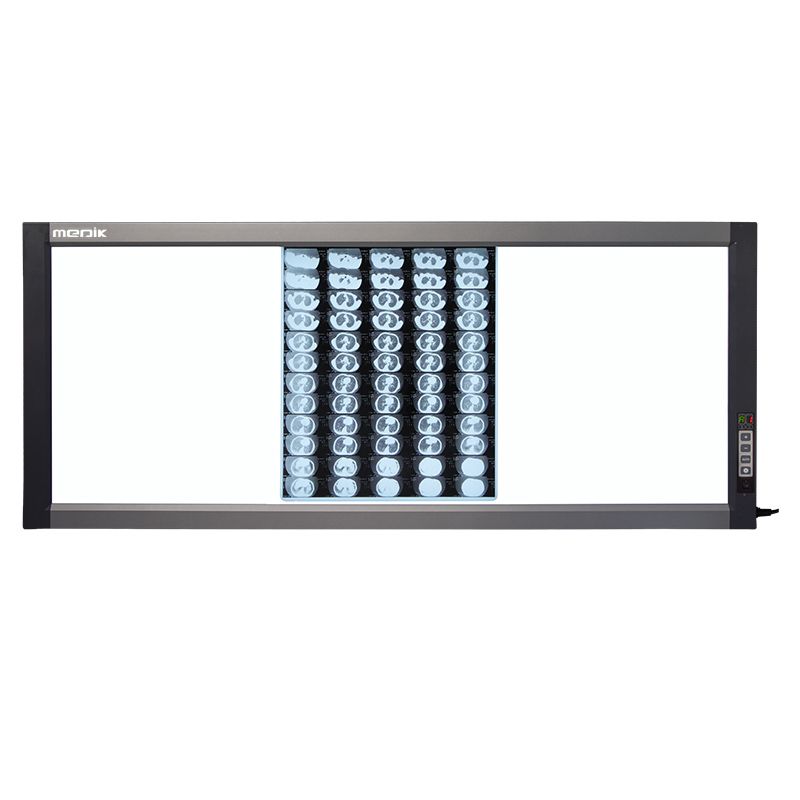

The YA-NS03D features a modern, ultra-slim design (only 25 mm thick) with aviation-grade aluminum and ABS construction. It delivers high-brightness, uniform illumination enhanced by side-light and light-guide technologies, along with precision dimming and intelligent, sensor-activated controls, making it a top-tier choice for X-ray and mammography film reading.
Features
- Slim 25 mm profile for a clean, modern look
- Long-lasting LED lights with over 50,000 hours of service life
- Side-lit design with light guide plate for uniform, glare-free lighting
- Durable aluminum and ABS frame ensure effective heat dissipation
- Flicker-free PWM dimming for stable and eye-friendly illumination
- Auto-on sensor activates light when film is inserted
- Independent panel control with brightness memory and delay-off
- Digital display with 9 adjustable brightness levels
- Soft silicone clips for easy film placement and removal
- Easy wall or bracket mounting
- Supports X-ray, digital, and mammography films
Technical parameter
| Model | YA-NS03D |
| External size | 1170*500*25mm |
| Viewing size | 1080*420mm |
| Maximum size of a readable film | 17*14 inches（355.6*431.8mm） |
| Max Power Consumption | 90W |
| Light source, Color temperature, Lifespan | Super brightness SMD led144 pieces/panel; 8000K color temperature; light source lifespan is over 50000h |
| Brightness adjustment range | 0～4000cd/㎡（customizable brightness） |
| Brightness uniformity of the observation screen | ≥90% |
| Power supply; Voltage;Frequency | Global voltage adaptive built-in power supply； AC90V～240V；50/60Hz |
