Model: YA-NS02D
External size: 810*500*25mm
Viewing size:720*420mm
Certificate: CE / ISO
After-sales Service: Online technical support
Warranty: 1-Year on Frame and Welds, and 1-Year on Parts

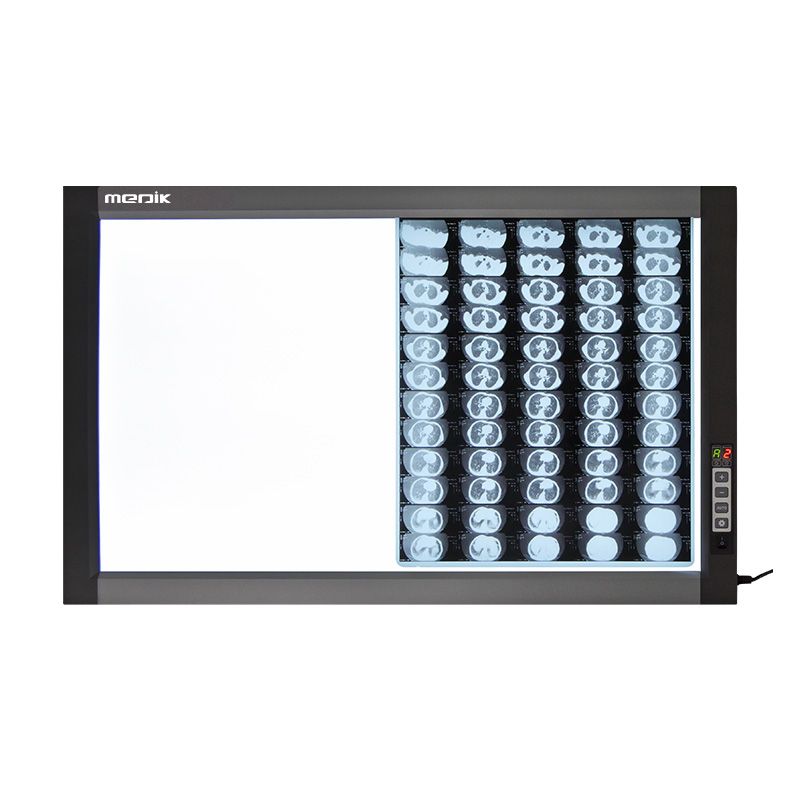

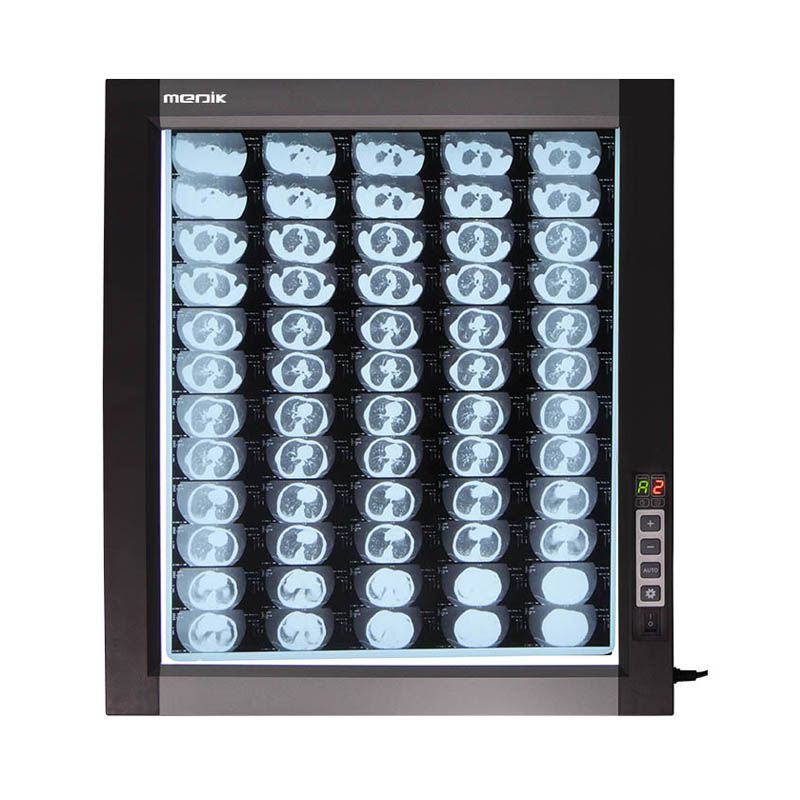

The YA-NS02D is a slim, high-performance film viewer designed for seamless and comfortable reading of X-ray and mammography films. Featuring a sleek 25 mm profile and robust aviation-grade aluminum and ABS construction, it delivers uniform, high-contrast illumination with efficient heat management. Ideal for both analog and digital film formats, it blends modern technology with user-friendly controls for effortless daily use.
Features
- Ultra-slim 25 mm profile for space-saving installation
- High-efficiency LED light source with 50,000+ hour lifespan
- Side-lit and light guide plate design for even, soft illumination
- Sturdy aluminum and ABS housing for effective heat dissipation
- PWM digital dimming for stable brightness and eye-friendly lighting
- Automatic sensor turns on light when film is inserted
- Independent panel control with brightness memory and delay-off function
- User-friendly digital controls with 9 brightness levels
- Flexible silicone clips for easy film loading
- Supports wall or bracket mounting
- Compatible with X-ray, digital, and mammography films
Technical parameter
| Model | YA-NS02D |
| External size | 810*500*25mm |
| Viewing size | 720*420mm |
| Maximum size of a readable film | 17*14 inches（355.6*431.8mm） |
| Max Power Consumption | 60W |
| Light source, Color temperature, Lifespan | Super brightness SMD LED 144 pieces/panel; 8000K color temperature; light source lifespan is over 50000h |
| Brightness adjustment range | 0～4000cd/㎡（customizable brightness） |
| Brightness uniformity of the observation screen | ≥90% |
| Power supply; Voltage;Frequency | Global voltage adaptive built-in power supply； AC90V～240V；50/60Hz |
