Model: YA-NS04D
External size: 1530*500*25mm
Viewing size:1440*420mm
Certificate: CE / ISO
After-sales Service: Online technical support
Warranty: 1-Year on Frame and Welds, and 1-Year on Parts

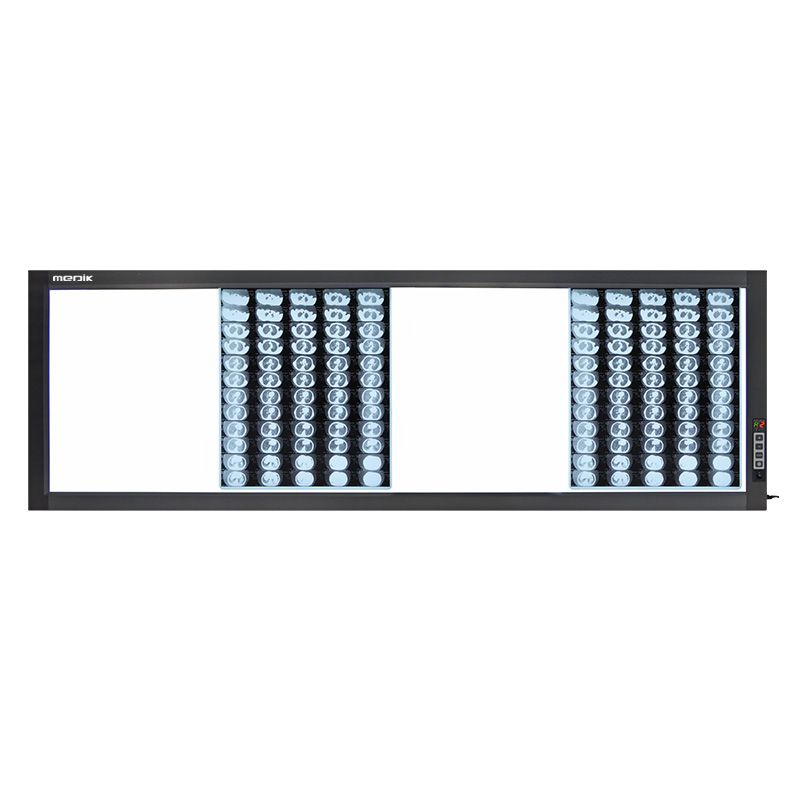

The YA-NS04D is an ultra-slim, high-performance LED viewer built to enhance clarity and comfort when examining medical films. Encased in a sleek 25 mm aluminum‑ABS shell, it combines side-light and light-guide technology with advanced digital dimming and smart sensor control—ideal for efficient, reliable reading of X-ray and mammography films.
Features
- Slim 25 mm profile for a clean, compact look
- Energy-efficient LED lights with 50,000+ hours lifespan
- Side-lit with light guide plate for even, soft illumination
- High brightness up to 4,000 cd/m² with over 90% uniformity
- Durable aluminum and ABS housing for effective heat dissipation
- Flicker-free PWM dimming for stable and eye-friendly lighting
- Auto-on sensor activates light when film is inserted
- Independent panel control with memory and delayed shut-off
- Digital display with 9-level brightness adjustment
- Suitable for X-ray, digital, and mammography films
Technical parameter
| Model | YA-NS04D |
| External size | 1530*500*25mm |
| Viewing size | 1440*420mm |
| Maximum size of a readable film | 17*14 inches（355.6*431.8mm） |
| Max Power Consumption | 120W |
| Light source, Color temperature, Lifespan | Super brightness SMD led144 pieces/panel; 8000K color temperature; light source lifespan is over 50000h |
| Brightness adjustment range | 0～4000cd/㎡（customizable brightness） |
| Brightness uniformity of the observation screen | ≥90% |
| Power supply; Voltage;Frequency | Global voltage adaptive built in power supply；AC90V～240V；50/60Hz |
