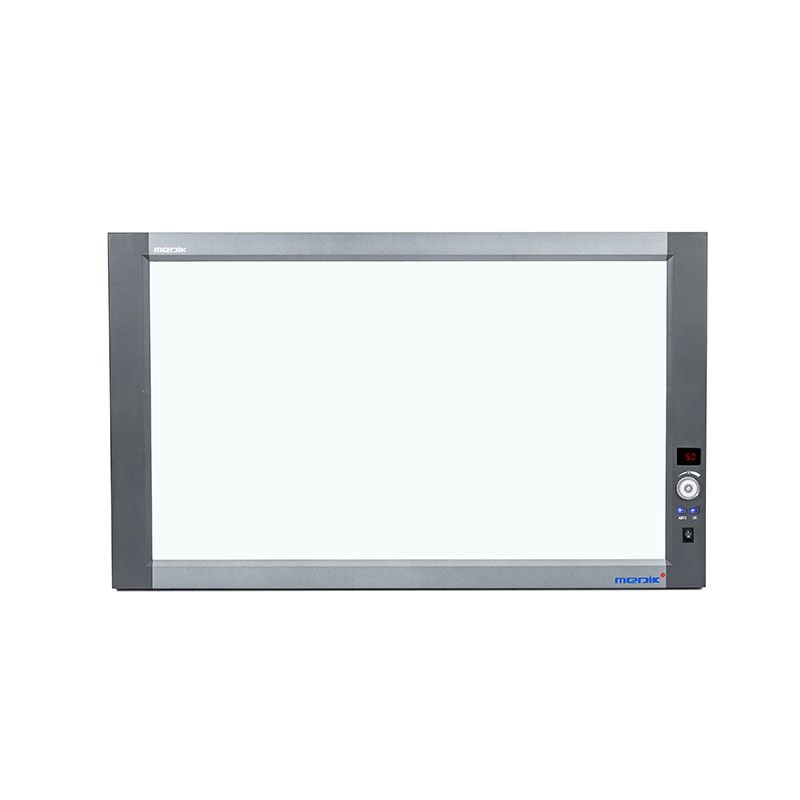

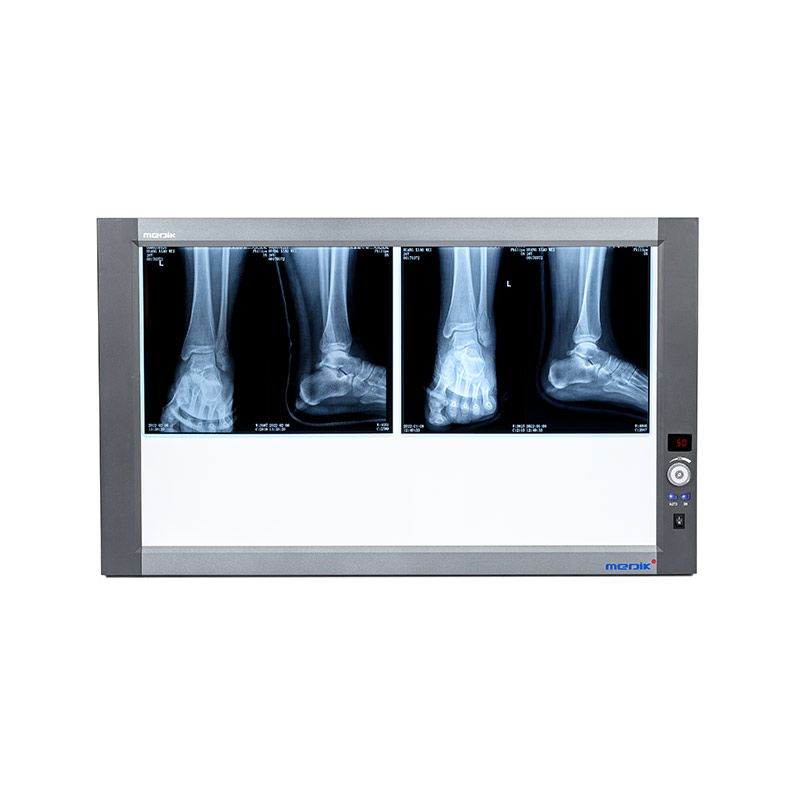

This model has optimal size and could display several images simultaneously, which is a very valuable feature to study a patient’s clinical history or tracing his/her recovery process. As all X-Ray Viewer negatoscope do, this model has a modern design and outstanding performance.
This model has optimal size and could display several images simultaneously, which is a very valuable feature to study a patient’s clinical history or tracing his/her recovery process. As all X-Ray Viewer negatoscope do, this model has a modern design and outstanding performance.
Main features
* PWM Controller for Dimming
The brightness of the light can be adjusted by the knob, Brightness 0-100 level steplessly adjustable 0-4500cd/m
* LED light sensor lighting design
By pressing the "Auto" button, the mode can be adjusted to sense light, insert the films, and the light will light up， more convenient for doctors to use.
* Acrylic Diffuse Plate
4mm Imported Acrylic Diffuse Plate， Frosted material, more beautiful, lightweight and tougher at the same time.
* Outside Frame
25mm thickness, more lightweight, can be hung on the wall or supported by brackets.
Technical parameter
| Model | Double YA-NS02 |
| External Size | 838*506*25 mm |
| Visual Size | 720*425 mm |
| Max. Power | 60W |
| Light Source | Super High Brighness SMD LED 144 pcs/Panel; 8.000K CT; LED Lifespan of 100,000hrs |
| Electric Parameters | Global Voltage Adaptive Built-in Power;AC90V-240V;50/60Hz |
| Brightness Setting | 3 Digits PWM Dimming System; Brightness 0-100 Stages Continuous Adjustable among 0-4500cd/m' |
| Clip Device | Silicone Clip Device |
| Mount Type | Wall-Mounted or Bracket |
| Applicable Films | General Film, Digital Film, Breast Mammography Film |
| Sensor Function | The Panel Will Be Light Up When Film Inserted and off When Moved away |
| Viewing Uniformity | ≥90% |
| Working Environment | Room Average Illuminance Should No More Than 100 lux |
