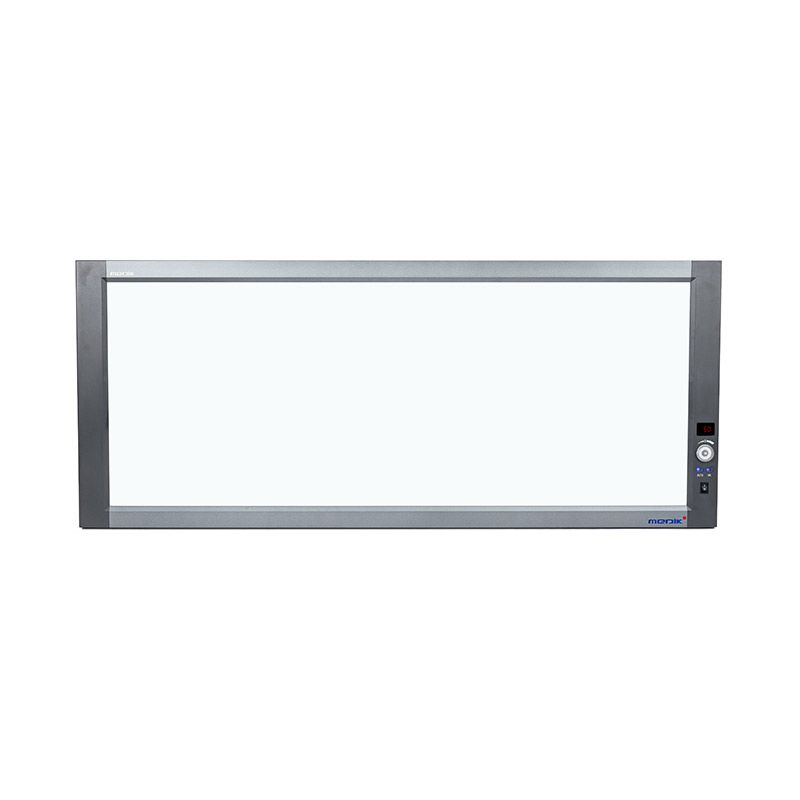

YA-NS03 Digital LED Screen X Ray Viewer Negatoscope

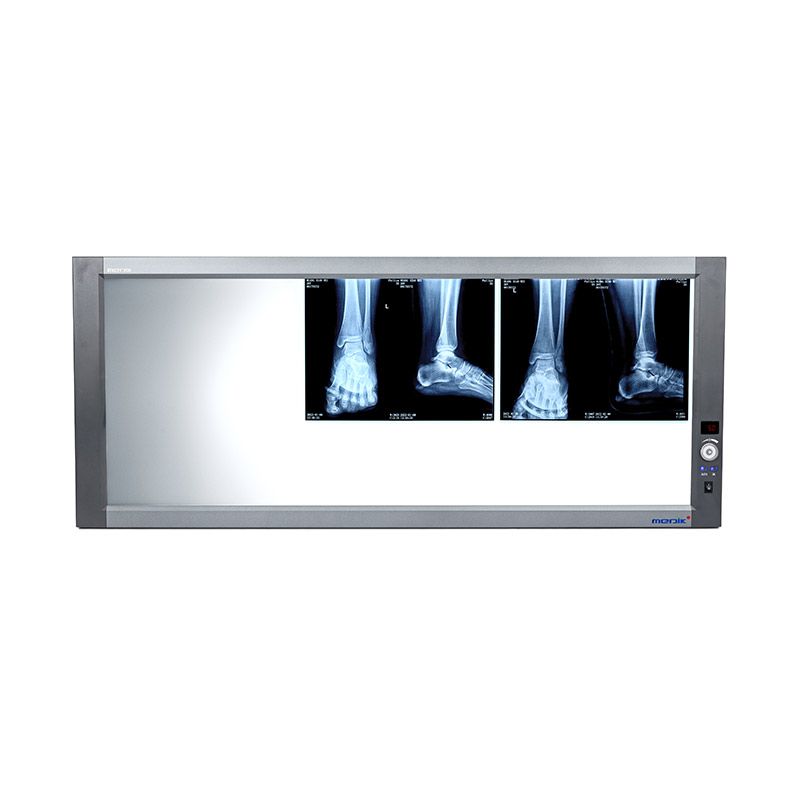

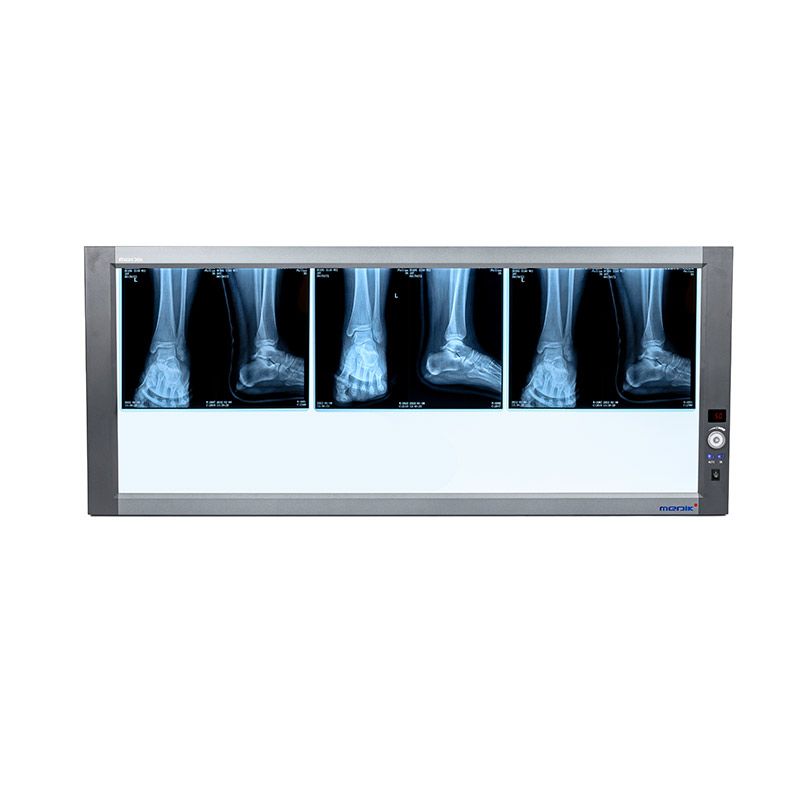

The biggest but still an easy-to-use model of X-Ray Viewer negatoscopes supporting review and analysis of a large number of images with handy image placement along the device frame perimeter. All the other performance indexes of this model are in the general ranges declared for negatoscopes.

The biggest but still an easy-to-use model of X-Ray Viewer negatoscopes supporting review and analysis of a large number of images with handy image placement along the device frame perimeter. All the other performance indexes of this model are in the general ranges declared for negatoscopes.

Main features

* PWM Controller for Dimming

The brightness of the light can be adjusted by the knob, Brightness 0-100 level steplessly adjustable 0-4500cd/m

* LED light sensor lighting design

By pressing the "Auto" button, the mode can be adjusted to sense light, insert the films, and the light will light up,more convenient for doctors to use.

* Acrylic Diffuse Plate

4mm Imported Acrylic Diffuse Plate,Frosted material, more beautiful, lightweight and tougher at the same time.

* Outside Frame

25mm thickness, more lightweight, can be hung on the wall or supported by brackets.

Technical parameter

ModelTriple YA-NS03
External Size1198*506*25 mm
Visual Size1080*425 mm
Max. Power90W
Light SourceSuper High Brighness SMD LED 144 pcs/Panel; 8.000K CT; LED Lifespan of 100,000hrs
Electric ParametersGlobal Voltage Adaptive Built-in Power;AC90V-240V;50/60Hz
Brightness Setting3 Digits PWM Dimming System; Brightness 0-100 Stages Continuous Adjustable among 0-4500cd/m'
Clip DeviceSilicone Clip Device
Mount TypeWall-Mounted or Bracket
Applicable FilmsGeneral Film, Digital Film, Breast Mammography Film
Sensor FunctionThe Panel Will Be Light Up When Film Inserted and off When Moved away
Viewing Uniformity≥90%
Working EnvironmentRoom Average Illuminance Should No More Than 100 lux
